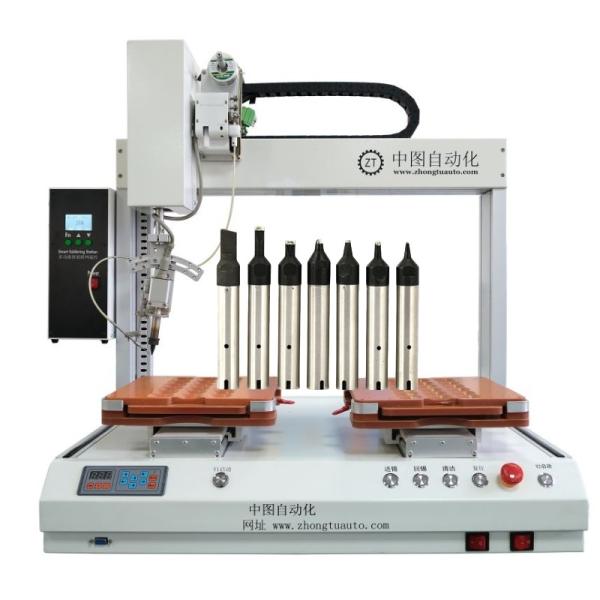

ZT PLC Controlled Automatic Soldering Machine for DIP with 3 and 0.6-1.5mm Solder Wire
The advantages of automatic soldering machine include the following:
1. Welding quality
• High consistency:
• Welding parameters such as temperature, time, tin delivery, etc., can be precisely set and controlled to ensure that the quality and shape of each solder joint remain highly consistent, avoiding the difference of solder joints caused by fatigue, emotion and other factors during manual welding, and effectively improving the overall welding quality of the product.
• For electronic components that require high welding accuracy, such as chip pin welding, the automatic soldering machine can precisely deliver the solder wire to the specified position and weld the solder joint to the standard.
• High stability: The equipment adopts high-quality imported parts and finished parts, with excellent wear resistance, not easy to fail, and can run stably for a long time to ensure the stability of welding quality. In contrast, manual welding may cause welding errors due to hand shaking, obstructed vision and other reasons.
2. Production efficiency
• Fast speed: the soldering speed is much faster than the traditional manual soldering machine, which is several times or even higher, and can complete a large number of welding tasks in a short time, which can replace 3-5 workers for soldering, greatly improving production efficiency and meeting the needs of large-scale production.
Continuous operation: can work continuously for 24 hours, not affected by fatigue, rest and other factors. Manual welding is difficult to maintain a high strength working state for a long time, and requires regular rest, resulting in a waste of production time.
3. Cost control
• Labor cost reduction:
A machine only needs one person to operate, and even a person can operate multiple machines at the same time, reducing the need for a large number of labor, thereby reducing the labor cost of the enterprise.
• Avoid production stagnation due to employee turnover and the cost of training new employees. It is relatively easy for new employees to start operating the automatic soldering machine, the training time is short, and it can be quickly put into production.
• Material cost savings: The amount of solder can be accurately controlled to avoid material waste caused by unstable tin delivery during manual welding. At the same time, due to the improvement of welding quality, the material loss caused by defective products is reduced.
• Reasonable energy consumption cost: the energy required is comparable to that of ordinary manual soldering machines, and the energy consumption will not be greatly increased because of automation, which ensures the production efficiency while saving energy.
Product Parameter:
| Name: | Automatic Soldering Robot | Place of Origin: | ShenZhen, China |
| Applicable Industries: | Manufacturing Plant, SMT , DIP | Key Selling Points: | Automatic |
| Video outgoing-inspection: | Provided | Weight (KG): | 65Kg |
| Marketing Type: | New Product 2024 | Voltage: | 220/110V 50~60Hz |
| Warranty period: | 1 Yea | Dimensions: | 850*750*850mm |
| Warranty of core components: | 3 Years | Solder Wire: | 0.6~1.5mm solder wire |
| Core Components: | PLC | Temperature Accuracy | ±3° |
| Power: | 680W | Solder Feeding Speed | 1~50mm/s |
| Current: | 5A | Repeate Accuracy | ±0.02mm |
Specification:
| | | ZT-HXJ441-R | ZT-HXJ4411-02 | ZT-HXJ4411-02R | |
| | | | 200/400W | 200/400/600W | |
Heating Temperature Range | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
| | |
| | |
| | 256MB, up to 999 files, single file up to 1000 points |
| | |
| | | | | | |
| | 600*750*850 | 800*750*850 | 850*750*850 | 1000*750*850 | |
Detail Photos:
Our advantage:
1.We are factory manufacturers.
2.Reduce overall cost.
3.Improve automation level.
4.Improve informatization level.
5.Improve product yield. 6.Provide Customers With the Most Advanced
System Solutions for Automation Equipment.
Our Services: | Pre-Sale | In Sale | |
| 1.Product Introduction,
2.Technical Communication,
3.Remote consulting service. | 1. Show the product,
2. Explain in detail how to use the product.
3. Answer the questions raised by customers. | 1.Support video service.
2.The whole equipment is guaranteed for 1 year;
3.The guide rail/motor/control parts is guaranteed for 3 years. |
FAQ: 1. who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. what can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
